Multifunction Gateway for Industrial Automation
STM32H7 . CAN/Modbus/Ethernet . Programmable I/O

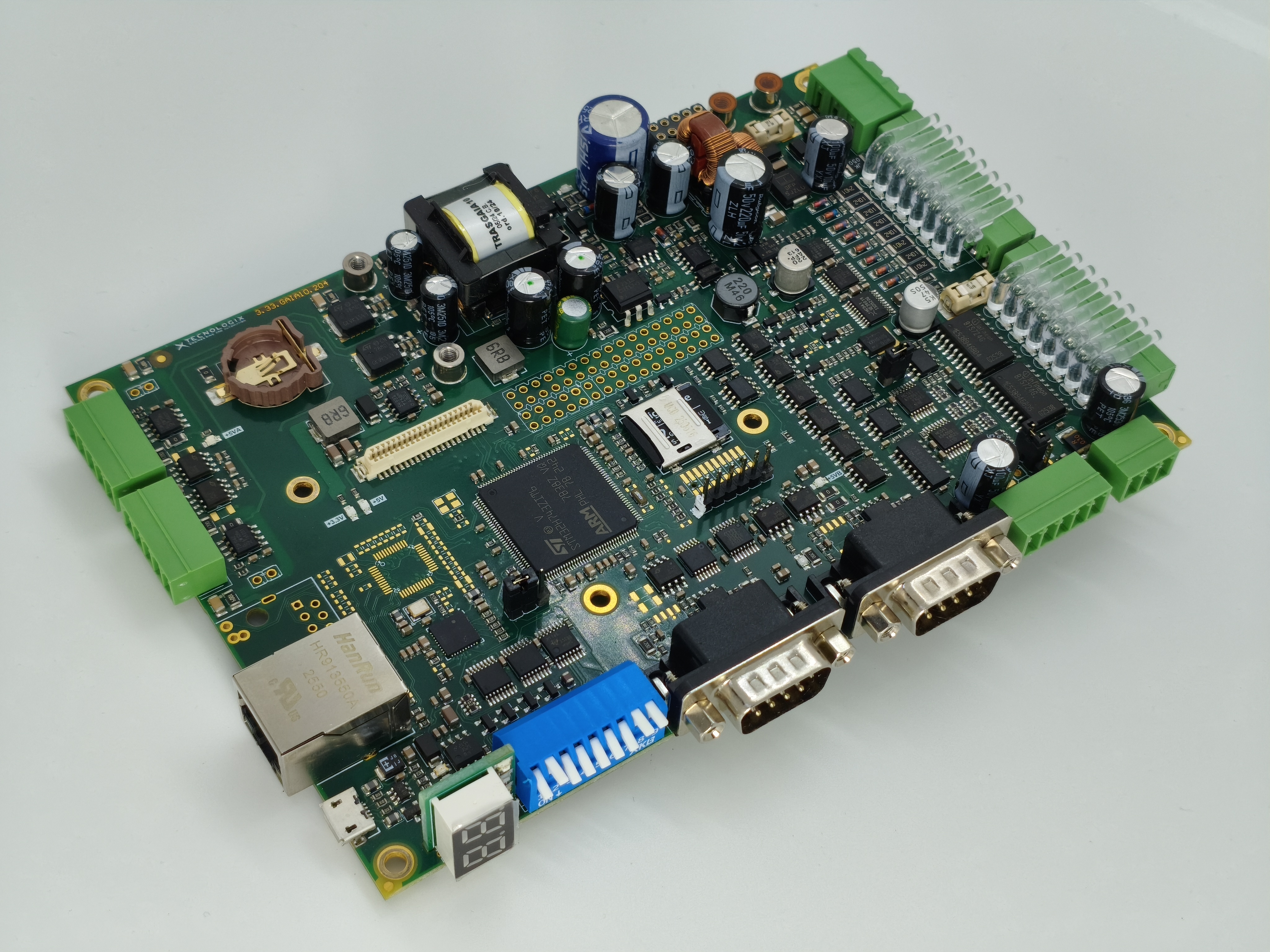

Tecnologix GaIA is a powerful programmable controller/gateway for industrial automation. Designed to work both as an intelligent I/O device and as a communication gateway toward fieldbus and IoT systems.
STM32H7
480 MHz
2× CAN-FD . 2× RS485 . Ethernet . USB
8 DI + 8 DO 24V . Expandable
| PARAMETER | VALUE |
|---|---|
| Processor | STM32H743 (Cortex-M7 @480MHz) |
| Memory | 2 MB Flash + 1 MB RAM |
| Power Supply | 24 V DC (isolated) |
| Communication | 2x isolated CAN/CAN-FD, 2x isolated RS232/RS485, Ethernet 10/100 |
| Digital I/O | 8 Inputs + 8 Outputs 24V (500mA protected) |
| Expansions | Analog Module, Encoder, EtherCAT, Profinet, 4G/WiFi |
| Mass Storage | Micro SD Slot |
| Temperature | -20°C to +70°C |
| Dimensions | 180 x 120 x 50 mm |
| Protection | IP20 (metal enclosure) |
