Examples

This section lists the example projects available for the GaIA controller.

Each example expects to find the folder gwa_bios in the respective root folder. A symbolic link to the gwa_bios folder can be created by running the symlink_gen.bat script (from terminal run as administrator or with developer mode enabled in Windows 10 or 11).

---

Examples List

• Buffered Serial
• CAN
• Digital IO
• High Speed Digital IO
• Encoder
• FTP Server
• HTTP Server
• Modbus Master
• Modbus RTU 2-channel Master-Slave
• Modbus RTU Master
• Modbus RTU Slave
• Modbus Slave
• SD Card
• TCP DIO Server
• TCP Echo Server
• USB Device Mass Storage Class
• USB Host Mass Storage Class

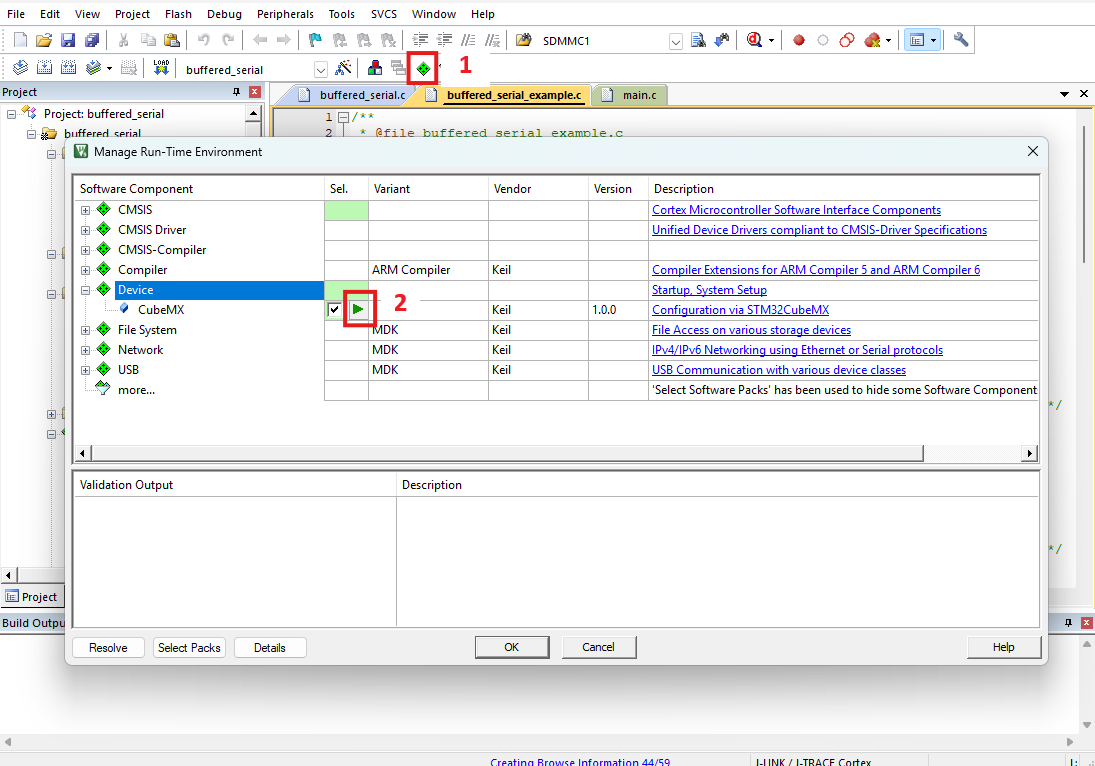

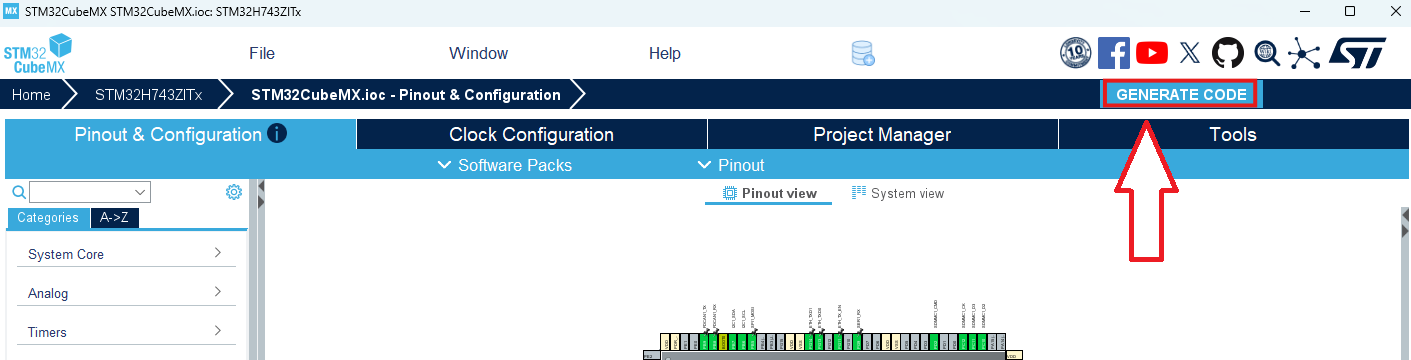

N.B.: When any example project in gwa_examples/stm32h7 is first opened, it's necessary to run "generate code" via STM32CubeMX (passing by the RTE) again to correctly link the STM32 drivers folders.
